HAMAMATSU 滨松 L15077-C7 超连续谱光源
详细参数
| Parameter | Description | Unit | ||
|---|---|---|---|---|
| Laser type | SC (Supercontinuum) | - | ||
| Beam mode | Single mode | - | ||
| Laser class | 4 | - | ||
| Polarization | Linear | - | ||
| Oscillation mode | Pulse operation | - | ||
| Repetition rate | 50 ±1 | MHz | ||
| Spectral distribution | 1300 to 2000 | nm | ||
| Output power | 50 | mW | ||
| Output stability | Typ. | ±0.1 | % | |
| Numerical aperture (NA) | Max. | 0.07 | - | |
| Fiber output core diameter | 10 | µm | ||
| Fiber output connector | FC / APC connector | - | ||
| Design life | 2000 | h | ||
| Input voltage (AC) | 100 V to 240 V, single phase 50 Hz / 60 Hz | － | ||
| Power consumption | Max. | 80 | VA | |
| Cooling method | LD | Forced air cooling by peltier cooler and fan | - | |
| Main unit | Forced air cooling by fan | |||
| Operating temperature range | +15 ℃ to +30 ℃ (no condensation) | - | ||
| Storage temperature range | -10 ℃ to +50 ℃ (no condensation) | - | ||
| Operating humidity range | 10 % to 60 % (no condensation) | - | ||
| Storage humidity range | 10 % to 60 % (no condensation) | - | ||
| External control | Irradiation control, irradiation signal, various error signals | - | ||
| Applicable standards | EMC standards | IEC 61326-1 Emission limits: CISPR 11 Group 1 Class B Immunity requirements: Table 2 | - | |
| Safety standards | IEC/EN 61010-1 IEC/EN 60825-1 | |||
| Environmental standard (RoHS) | IEC/EN 63000 | |||

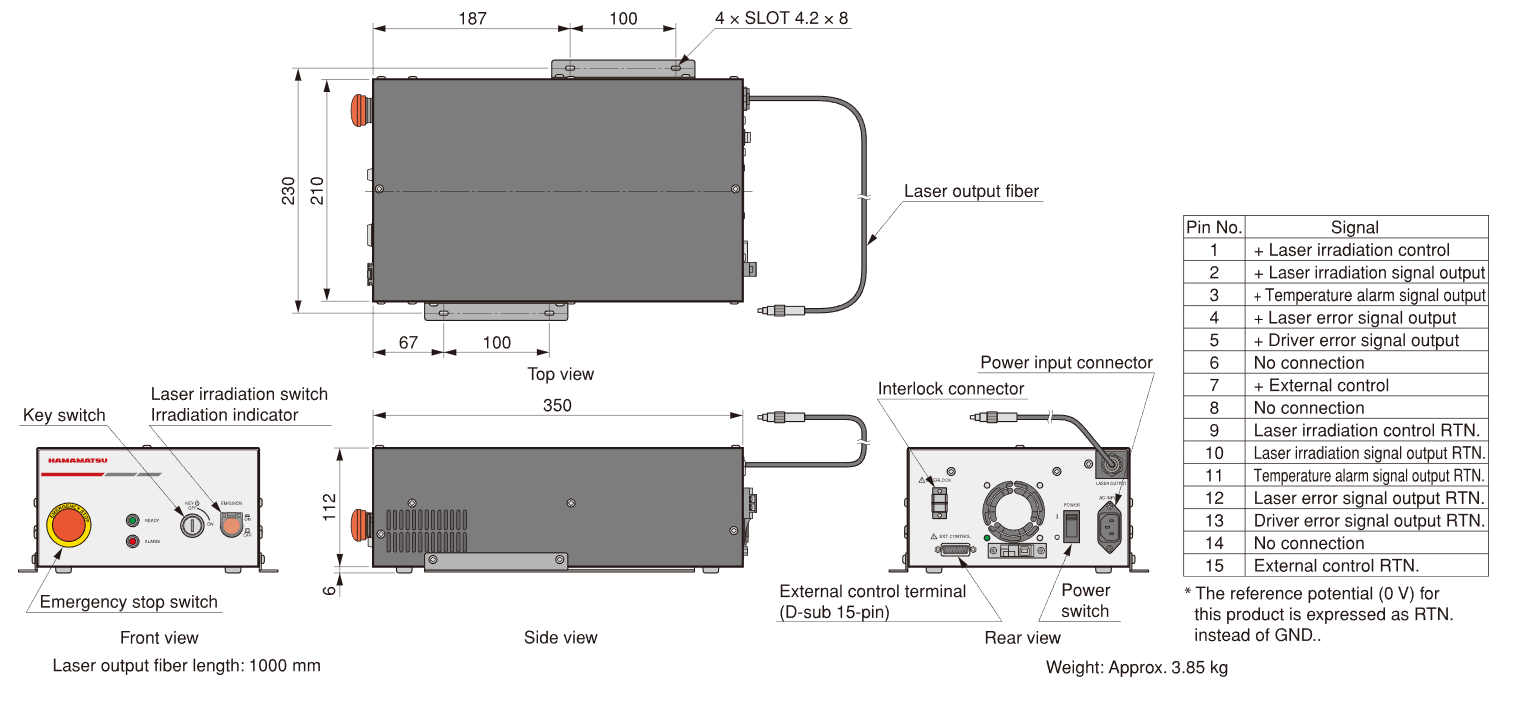

外形尺寸图（单位：mm）
