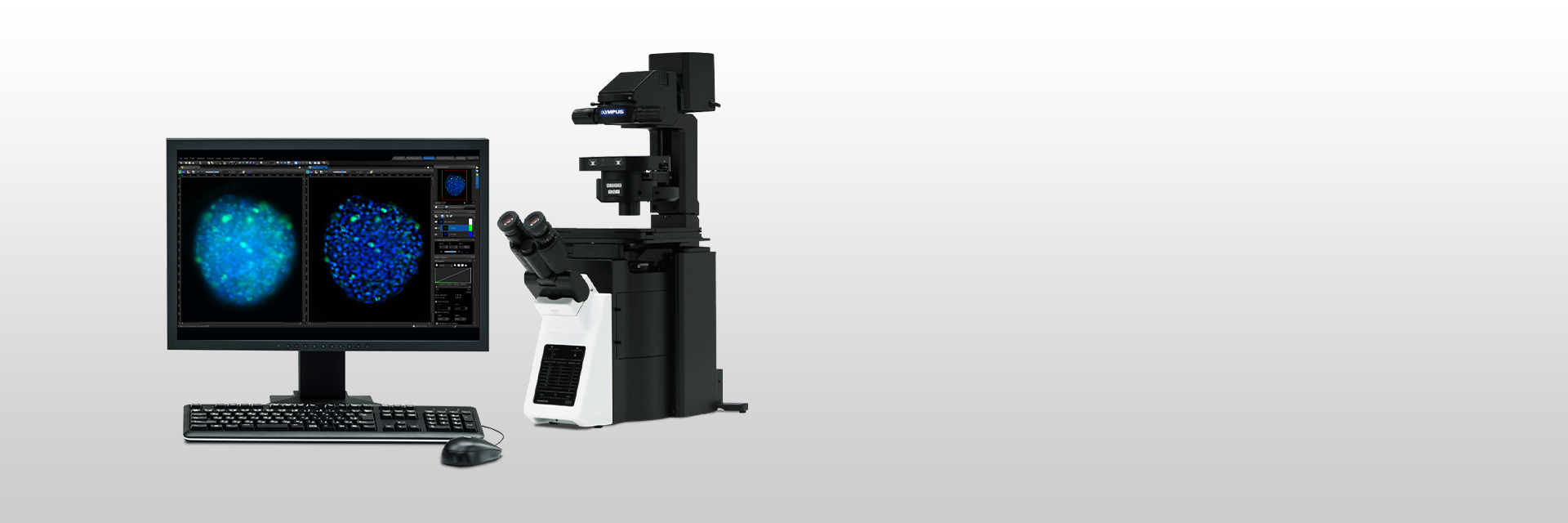

EVIDENT 奥林巴斯 cellSens 成像软件

Intuitive Operation. Seamless Workflow. 奥林巴斯cellSens平台打造了基于操作人员偏好工作流的独特个性化及直观成像体验。 cellSens可实现对图标、工具栏和控件显示及位置的全面控制，简化了桌面，并提高了工作效率。 cellSens便于使用，功能强大且灵活。软件使用了模块设计，可以根据预算，及成像应用进行选配。这就使该软件能够不断发展并满足研究的需求。

详情

cellSens Entry

cellSens Entry是想要进入数字图像采集和文档记录领域的研究人员理想的垫脚石，它提供了简单图像采集所需的所有工具。

Entry
手动流程
编码装置
数据库客户端
交互式测量方法

*cellSens基础版在某些区域未推出。

cellSens Standard

奥林巴斯 cellSens Standard 软件，是 cellSens Entry的高阶版，不仅可拍摄单张图片，更可识别/控制显微镜的编码/电动部件，实现复杂采图过程(如时间序列拍摄/多色荧光采图等)。

Standard
Multiposition
Count & Measure
Manual Process
Database Core
Database Client
Confluency Checker
NetCam

cellSens Dimension

奥林巴斯cellSens Dimension是cellSens软件的全能版本, 控制全电动显微镜系统，根据需要组合执行复杂实验流程（长时间time-lapse/多层z-stack/多色/多点/拼图/自动对焦等），且具备强大的图像分析处理功能。

Dimension
Multiposition
Count & Measure
CI Deconvolution
Well Plate Navigator
Ratio / FRET
Photo Manipulation
Database Core
Database Client
NetCam
Life Science Analysis

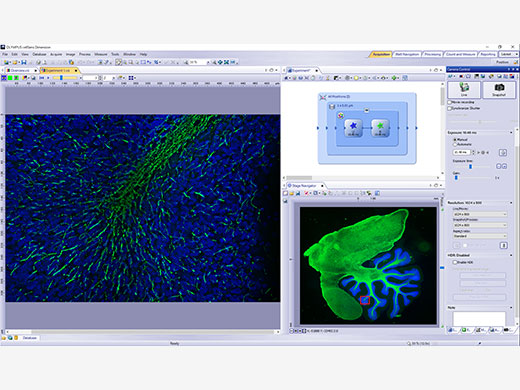

	5D试验获取专业的5D采集工具（XY/Z/多色/多点/时间序列），如组合使用实验管理员GEM和滴定板导航器WN（多孔板），以流程化的结构图展示实验采集过程，简洁明确。 -图形化实验管理员（ GEM：Graphic Experiment Manager ）：用图形化的方式直观组合需要的采图功能，轻松实现复杂实验流程。 -滴定板导航器（WN: Well Navigator）（多孔板）：采图设置流程化，且图像与多孔板的孔位可一一对应视图，界面友好 Learn more

5D试验获取

专业的5D采集工具（XY/Z/多色/多点/时间序列），如组合使用实验管理员GEM和滴定板导航器WN（多孔板），以流程化的结构图展示实验采集过程，简洁明确。

-图形化实验管理员（ GEM：Graphic Experiment Manager ）：用图形化的方式直观组合需要的采图功能，轻松实现复杂实验流程。

-滴定板导航器（WN: Well Navigator）（多孔板）：采图设置流程化，且图像与多孔板的孔位可一一对应视图，界面友好

Learn more

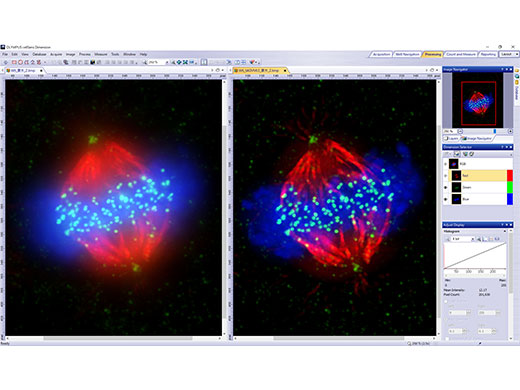

图像处理和共享特有的TruSight消卷积（反卷积）功能和各种强大的图像处理技术，根据展示或分析需要，灵活处理图片。同时，结合会议模式（Conference Mode），轻松共享实验图片，使用内置的报告模板，拖-放图文即可生成专业的报告。 Learn more

图像处理和共享

特有的TruSight消卷积（反卷积）功能和各种强大的图像处理技术，根据展示或分析需要，灵活处理图片。同时，结合会议模式（Conference Mode），轻松共享实验图片，使用内置的报告模板，拖-放图文即可生成专业的报告。

Learn more

图像处理和共享

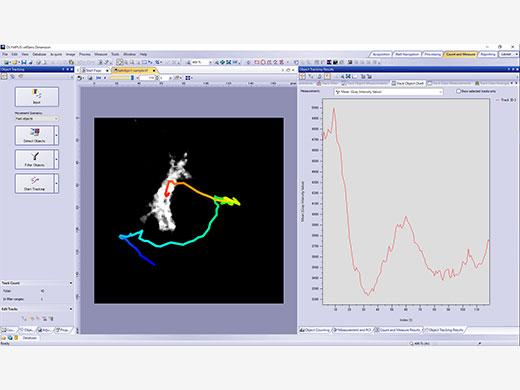

	强大分析工具通过图像动态处理提取更多数据，从而获得更为可靠的实验结果。该软件的深度学习技术（TruAI）还可实现更为出色的分割识别。利用宏管理器自动完成包括图像分析和保存在内的整个工作流程。 Learn more

强大分析工具

通过图像动态处理提取更多数据，从而获得更为可靠的实验结果。该软件的深度学习技术（TruAI）还可实现更为出色的分割识别。利用宏管理器自动完成包括图像分析和保存在内的整个工作流程。

Learn more

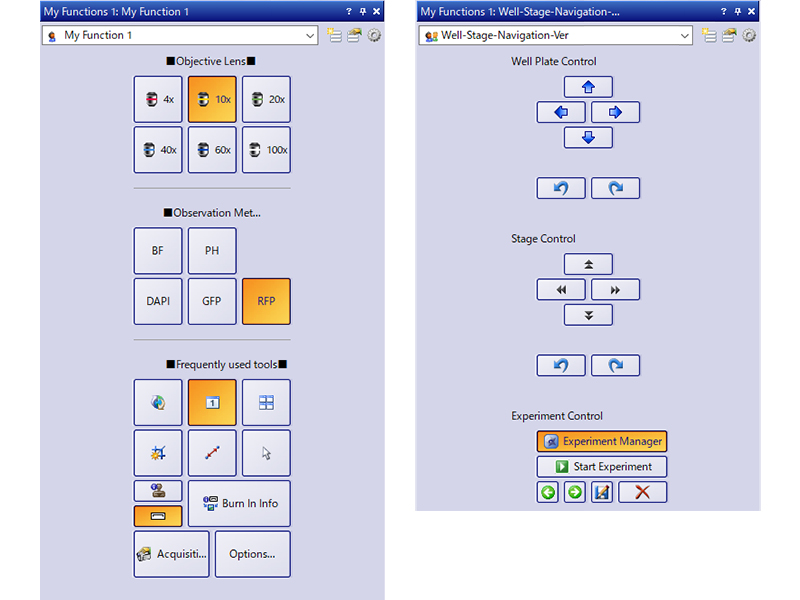

可定制用户界面利用自定义功能（My Function）工具，按照个人习惯设置个性化软件工作界面，自由组合采图和分析工具窗口。 Learn more

可定制用户界面

利用自定义功能（My Function）工具，按照个人习惯设置个性化软件工作界面，自由组合采图和分析工具窗口。

Learn more

可定制用户界面

cellSens Functions and Optional Solutions

		Dimension	Standard	Entry
Layout	User experience customization	✓	✓	✓
View	Overlay multiple images	✓	✓	-
	Document groups for side-by-side image comparison	✓	✓	✓
	Movie playback	✓	✓	✓
	Tile view (multiple images in a single data set shown side-by-side)	✓	✓	✓
	Slice view for orthogonal plane viewing of 3D or time-lapse data sets	✓	-	-
	Voxel viewer for isosurface and volumetric rendering of 3D and 4D data sets	✓	-	-
Image Acquisition	Snap/movie acquisition	✓	✓	✓
	Time-lapse at specified interval	✓	✓	-
	Automated multiwavelength	✓	✓	-
	Z-stack	✓	-	-
	Multidimensional (XYZT and wavelength)	✓	-	-
	Graphical Experiment Manager	✓	-	-
	Manual panoramic imaging (Instant MIA and Manual MIA)	✓	Manual Process	Manual Process
	Multiposition visitation and stage navigator	Multiposition	-	-
	Automated panoramic imaging (auto MIA, requires motorized stage)	Multiposition	-	-
	Instantly create EFI image (manual or motorized Z)	✓	Manual Process	Manual Process
	Simultaneous multicolor Imaging (requires two identical cameras** or image splitter)	✓	-	-
	Live deblurring	✓	-	-
	High dynamic range imaging (HDRI)	✓	-	-
	Multiwell plate acquisition	Well plate navigator and Multiposition	-	-
Image Processing	Geometry/combine/filter processing	✓	✓	-
	Fluorescence unmixing	✓	-	-
	Brightfield unmixing	Count & Measure	-	-
	Deblurring (No/Nearest Neighbor, Wiener Filter)	✓	-	-
	Kymograph	✓	-	-
	2D deconvolution	✓	-	-
	3D deconvolution （constrained iterative deconvolution with GPU process）	CI Deconvolution	-	-
Image Analysis	Phase analysis	✓	-	-
	Object measurements and classification	Count & Measure	Count & Measure	-
	Interactive 2D measurements	✓	✓	✓*
	Intensity plot over time/z	✓	-	-
	Colocalization	✓	-	-
	Object counting (manual)	✓	✓	-
	Object tracking	Tracking and Count & Measure	-	-
	Online ratio and kinetics	Ratio/FRET	-	-
	Ratio analysis (offline)	✓	-	-
	FRET analysis	Ratio/FRET or Life Science Analysis	-	-
	FRAP analysis	Photo Manipulation or Life Science Analysis	-	-
	Cell count and confluency measurements	✓	Confluency Checker	-
Deep Learning	Training of Neural Networks	Deep Learning	Deep Learning	-
Deep Learning	Inference using trained Neural Networks (offline/online)	Deep Learning or Count & Measure	Deep Learning or Count & Measure	-
Documentation and Collaboration	Automatically compose MS Word reports	✓	-	-
	Database image and data management solution for microscopy	Database Core	Database Core	-
	Open database and load records/documents from database	Database Client	Database Client	Database Client
Remoting	Remote live image viewing	NetCam	NetCam	-

* Three points angle, four points angle, arbitrary line, closed polygon, polyline and perpendicular line only. Interactive 2D measurements option is needed to add other measurement tools and make exporting Excel spreadsheets possible.
** Supported cameras: iXon Ultra 897, Zyla 5.5 (USB 3.0), Zyla 4.2 (USB 3.0/CamLink), Neo, iXon Ultra 888, ImagEM X2, ORCA-Flash 4.0 (V2/V3), Prime 95B, Prime BSI, Prime BSI Express, Sona4.2B-11, ORCA Fusion, ORCS-Fusion BT, ORCA-QUEST

Products with Confirmed Functionality

			Dimension	Standard	Entry
Olympus	Camera	DP22, DP23, DP23M, DP27, DP28, DP74, DP75, DP80, XM10, UC90, LC20, LC30, LC35, SC50, SC180	✓	✓	✓
	Micoscope	BX43, BX53, BX63, BX61, BX61WI, IX83, IX73, IX81, SZX16A	✓	✓	-
	Micoscope	IX81-ZDC, IX81-ZDC2	✓	-	-
	Peripherals	BX-DSU, IX3-DSU, IX3-ZDC, IX3-ZDC2, IX2-DSU, IX2-ZDC, IX2ZDC2, U-CBF, cellTIRF (multiline, single line), USB-ODB converter, Real Time Controller (U-RTCE)	✓	-	-
	Light Source	U-LGPS	✓	✓	-
Hamamatsu	Camera	ImagEMX2, ORCA-Flash 4.0 V3, ORCA-Flash 4.0 LT PLUS, ORCA-Flash 4.0 LT3, ORCA-Fusion, ORCA-Fusion BT, ORCA-QUEST	✓	-	-
	Camera	ORCA-spark	✓	✓	-
	Image Splitter	W-View Gemini	✓	-	-
Q-Imaging	Camera	Retiga 6000	✓	-	-
Photometrics	Camera	Prime (PCI-Express), Prime 95B, Prime BSI, Prime BSI Express, Moment	✓	-	-
Photometrics	Image Splitter	Dual View DV2 / QuadView QV2	✓	-	-
Andor	Camera	iXon Ultra 897, iXon Ultra 888, iXon Life 888, iXon Life 897, Sona4.2B-11,Zyla4.2/Zyla4.2 PLUS (Camera-link,USB3.0), Zyla5.5 (Camera-link 10tap,USB3.0), ZL41 Cell 4.2 (Camera-link,USB3.0), Neo5.5	✓	-	-
Vincent Associates	Shutter	Uniblitz shutter (VCM-D1, VMM-D1, VMM-D3)	✓	✓	-
CoolLED	Light Source	pE-1, pE-2, pE800, pE-4000	✓	-	-
CoolLED	Light Source	pE-300white, pE-300ultra, pE-340fura	✓	✓	-
Excelitas	Light Source	X-Cite120LED, X-Cite XYLIS, X-Cite TURBO	✓	-	-
Lumencor	Light Source	SOLA SEII, SEII 365, Spectra X	✓	-	-
Sutter	Shutter, FW	Lambda 10-3/10-B	✓	-	-
Prior	Motorized XY Stage	ProScan III, Optiscan III	Multiposition	-	-
	Shutter, FW, Z-drive	ProScan (I, II, III) , Optiscan III	✓	-	-
	Piezo Z (Control via Real Time Controller)	NanoScanZ NZ100	✓	-	-
Ludl	Motorized XY Stage	Mac 6000	Multiposition	-	-
Ludl	Shutter, FW, Z-drive	Mac 6000	✓	-	-
Märzhäuser	Motorized XY Stage	Tango, Pilot Stage	Multiposition	-	-
Märzhäuser	Z-drive Controller	Tango	✓	-	-
Physik Instrumente	Piezo Z (Control via Real Time Controller)	PIFOC P-721	✓	-	-
Applied Scientific Instrumetation	Motorized XY Stage	MS-2000	Multiposition	-	-
Applied Scientific Instrumetation	Z-drive Controller	MS-2000	✓	-	-
National Instruments	Digital TTL Device	NI USB-6501	✓	-	-
National Instruments	Digital TTL Device	NI USB-6343 BNC	Laser Control	-	-
Yokogawa	CSU	CSU-X1, CSU-W1	✓	-	-

Regarding the detailed Windows OS compatibility, please contact an Evident sales representative.

Compatible image formats

Read and write	JPEG, JPEG2000, TIFF, BMP, AVI, PNG, VSI, PSD(Adobe Photoshop), Big TIFF, OIR
Read only	GIF, OIF/OIB(FLUOVIEW format), Cell, STK (MetaMorph), MRC (Medical Research Council)

System requirements

OS	Microsoft Windows 10 Professional (64-bit) (22H2), Microsoft Windows 11 Pro (64-bit)(23H2)
OS Language	English, Simplified Chinese, Japanese, German and Italian (Entry and Standard)
CPU	Intel Core i5, Intel Core i7, Intel Xeon Recommended for high-speed image acquisition: QuadCore
RAM	8GB for general applications, 16GB or more is recommended for high-speed image acquisition, 32GB or more is recommended for Deep learning （For DP23/DP28/DP23M, dual memory is recommended for high frame rate imaging)
HDD	5 GB for installation Recommended for high speed image acquisition: Solid State Drive (SSD)

Software version update

Version update is available for the next version following the version written on license card. (Exclude updating sub-minor versions) An update that spans 2 or more major or minor versions is required an update license.
Update license provides access to the latest version of cellSens after above period.
